- Insulation Class F, Temperature rise B or F, 40 ºC ambient
- Cast Iron construction, 460 V, Direct-on-line & Inverter duty
- Labyrith seal at 3600 RPM Motor, Protech seal at 1800, 1200 RPM Motor
- WTD PT 100 Ohm 2 EA/Phase
- BTD PT 100 Ohm 1 EA/Bearing
- Heater 1 EA/Motor
Unit of Measure
Specifications
Brands |
N/A HD Hyundai Electric |
Model |
N/A IEEE XL |
Power |
N/A 900 hp |

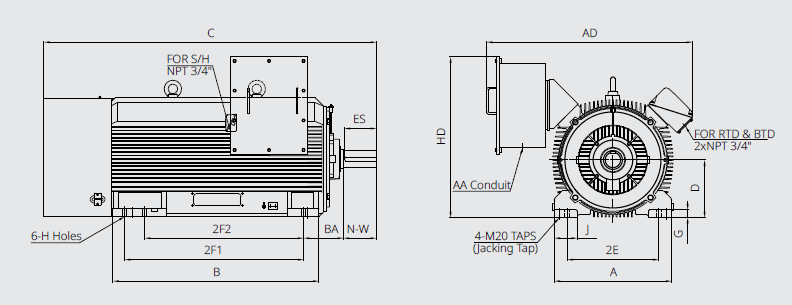

Frame Number |
N/A 5812SC |
Speed |
N/A 3570 rpm |
Voltage |
N/A 575 V460 V |
Full Load Efficiency |
N/A 95.8 % |
Full Load Power Factor |
N/A 0.89 |
Full Load Current |
N/A 987.8 A |
Locked Rotor Amperage |
N/A 700 % |
Sound Pressure Level |
N/A 89 dBA |
Approximate Weight |
N/A 7130 lb |
Construction Material |
N/A Cast Iron |
Phase |
N/A 3 |
Mounting Configuration |
N/A C-Face Foot |
Standards and Certifications |
N/A LV NEMA Motor U.S Standard |
Remarks |
N/A Applicable to Each single of accessory Ex. IB, SH, IBSH & etc. |
Torque
Rated Torque |
N/A 1324.2 lb·ft |
Locked Rotor Torque at Full Load |
N/A 150 % |
Break Down Torque at Full Load |
N/A 250 % |
Electrical Features
Frequency |
N/A 60 Hz |
Altitude |
N/A 3300 ft |
Ambient Temperature |
N/A 40 ºC |
Enclosure |
N/A Totally Enclosed (Protection : IP55) |
Method of Cooling |
N/A IC411 (FC) |
Efficiency |
N/A National Electrical Manufacturers Association (NEMA) Premium |
Duty |
N/A Continuous (S1) |
Design |
N/A NEMA Design B Torque |
Insulation Class |
N/A F (Impregnation Resin & Magnet wire : Class H) Inverter duty, Exceeds NEMA MG-1 Part 31 |
Voltage at 50 Hertz (hz) Frequency |
N/A 380 V400 V415 V |
Temperature Rise Class for Sine Wave Power |
N/A B |
Temperature Rise Class for Variable Frequency Drive (VFD) Power |
N/A F |
Service Factor for Sine Wave Power |
N/A 1.15 |
Service Factor for Variable Frequency Drive (VFD) Power |
N/A 1.0 |
Variable Torque Frequency |
N/A 6 to 60 Hz |
Constant Torque Frequency Range |
N/A 30 to 60 Hz |
Mechanical Features
Mounting |
N/A C-Face with Foot (B35) : Applicable |
Frame Material |
N/A Cast-Iron |
Rotor Material |
N/A Aluminum Die Casting Centrifugal Cast Aluminum |
End-Shield Material |
N/A Cast-iron |
Fan Material |
N/A Non-Sparking Conductive Plastic Fan |
Fan Cover Material |
N/A Fabricated Steel |
Rotation |
N/A Uni-Directional |
Drive End Bearing |
N/A Ball or Roller, Regreasable |
Non-Drive End Bearing |
N/A Ball or Insulator, Regreasable |
Bearing Protection |
N/A Labyrinth Seal |
Inner Bearing Cap |
N/A Applied |
Lubrication |
N/A Polyurea (Polyrex EM Grease) |
Shaft DE Threaded Hole |
N/A Applied |
Shaft DE Keyway |
N/A Opened keyway |
Shaft Locking Device |
N/A Frames with Roller Bearing (To Prevent Bearing Brinelling) |
Terminal Box Material |
N/A Fabricated Steel |
Terminal Box Mounting |
N/A F1 F2 |
Terminal Box Cable Hole Plug Material |
N/A Plastic |
Number of Lead Cable Wires |
N/A 6 Lead(s) |
Accessories |
N/A
W.T.D (PT 100 Ohm) 2 EA / phase B.T.D (PT 100 Ohm) 1 EA / Bearing Space Heater 1 EA / Motor Auxiliary Terminal box 2 EA / Motor |
Drain Plug Frame |
N/A Both Sides of Frame Bottom |
Drain Plug Grease Outlet |
N/A Applied |
Tap Provision for Vibration Sensor |
N/A Applied |
Tap Provision for B.T.D |
N/A Applied |
Certification |
N/A
CSA - Class I, Division 2 - Groups A, B, C & D Temp. code at Sine Wave Power : : T3A CSA - Class II, Division 2 - Groups F & G CSA - CSA C-390 - Premium Efficiency (Up to 500 HP) DOE - DOE Certification #CC0038A - Department of Energy Efficiency CE - EN 60034-1 - CE Declaration of Conformity IEEE45 - ABS Product Type Approval - Marine Duty |
Name Plate Markings |
N/A Certified Security Associate (CSA) Creative Commons (CC) (Department of Education (DOE)) European Conformity (CE) |
Name Plate Material |
N/A Stainless Steel AISI304 |
Painting Type |
N/A Epoxy Zinc with Polyurethane Top Coat |
Painting Color |
N/A Munsell 7.5BG6/1.5 |
Common Lifting Device |
N/A Eye Bolt (s) |
Common Warranty |
N/A 5 Years from Date of Shipment |
