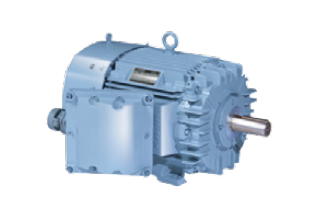

IXHHI Model - Explosion Proof, Premium Efficiency, Three Phase, TEFC, Foot Mounted Electric Motors
HD Hyundai Electric Motors
Features
- Insulation Class F, Temperature rise B or F, 40 ºC ambient
- 230/460 V ~ 125 HP, 460 V 150 HP ~ 250 HP
- Class 1 Division 1 Group C&D Temp. code T4 with Thermostat 1 EA/Ph.
- Cast Iron construction, 460 V, Direct-on-line & Inverter duty
- IP55, Diagonally split, Gasketed terminal box, Fully rotatable at 90 increments
- Tap provision for Vib. sensor & Bearing Temp. Detector Except Vib. sensor & Bearing Temp. Detector
Item # |
Item Name |
Power |
Frame Number |
Speed |
Voltage |
---|---|---|---|---|---|
IXHHI1-36-143T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 1 Horsepower (hp) Power and 3490 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 1 hp | Frame Number N/A 143T | Speed N/A 3490 rpm | Voltage N/A 230 V460 V |
IXHHI1-18-143T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 1 Horsepower (hp) Power and 1755 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 1 hp | Frame Number N/A 143T | Speed N/A 1755 rpm | Voltage N/A 230 V460 V |
IXHHI1-12-145T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 1 Horsepower (hp) Power and 1155 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 1 hp | Frame Number N/A 145T | Speed N/A 1155 rpm | Voltage N/A 230 V460 V |
IXHHI1.5-36-143T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 1.5 Horsepower (hp) Power and 3485 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 1.5 hp | Frame Number N/A 143T | Speed N/A 3485 rpm | Voltage N/A 230 V460 V |
IXHHI1.5-18-145T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 1.5 Horsepower (hp) Power and 1750 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 1.5 hp | Frame Number N/A 145T | Speed N/A 1750 rpm | Voltage N/A 230 V460 V |
IXHHI1.5-12-182T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 1.5 Horsepower (hp) Power and 1175 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 1.5 hp | Frame Number N/A 182T | Speed N/A 1175 rpm | Voltage N/A 230 V460 V |
IXHHI2-36-145T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 2 Horsepower (hp) Power and 3480 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 2 hp | Frame Number N/A 145T | Speed N/A 3480 rpm | Voltage N/A 230 V460 V |
IXHHI2-18-145T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 2 Horsepower (hp) Power and 1745 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 2 hp | Frame Number N/A 145T | Speed N/A 1745 rpm | Voltage N/A 230 V460 V |
IXHHI2-12-184T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 2 Horsepower (hp) Power and 1175 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 2 hp | Frame Number N/A 184T | Speed N/A 1175 rpm | Voltage N/A 230 V460 V |
IXHHI3-36-182T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 3 Horsepower (hp) Power and 3520 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 3 hp | Frame Number N/A 182T | Speed N/A 3520 rpm | Voltage N/A 230 V460 V |
IXHHI3-18-182T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 3 Horsepower (hp) Power and 1770 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 3 hp | Frame Number N/A 182T | Speed N/A 1770 rpm | Voltage N/A 230 V460 V |
IXHHI3-12-213T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 3 Horsepower (hp) Power and 1185 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 3 hp | Frame Number N/A 213T | Speed N/A 1185 rpm | Voltage N/A 230 V460 V |
IXHHI5-36-184T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 5 Horsepower (hp) Power and 3515 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 5 hp | Frame Number N/A 184T | Speed N/A 3515 rpm | Voltage N/A 230 V460 V |
IXHHI5-18-184T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 5 Horsepower (hp) Power and 1760 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 5 hp | Frame Number N/A 184T | Speed N/A 1760 rpm | Voltage N/A 230 V460 V |
IXHHI5-12-215T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 5 Horsepower (hp) Power and 1180 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 5 hp | Frame Number N/A 215T | Speed N/A 1180 rpm | Voltage N/A 230 V460 V |
IXHHI7.5-36-213T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 7.5 Horsepower (hp) Power and 3530 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 7.5 hp | Frame Number N/A 213T | Speed N/A 3530 rpm | Voltage N/A 230 V460 V |
IXHHI7.5-18-213T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 7.5 Horsepower (hp) Power and 1775 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 7.5 hp | Frame Number N/A 213T | Speed N/A 1775 rpm | Voltage N/A 230 V460 V |
IXHHI7.5-12-254T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 7.5 Horsepower (hp) Power and 1175 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 7.5 hp | Frame Number N/A 254T | Speed N/A 1175 rpm | Voltage N/A 230 V460 V |
IXHHI10-36-215T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 10 Horsepower (hp) Power and 3525 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 10 hp | Frame Number N/A 215T | Speed N/A 3525 rpm | Voltage N/A 230 V460 V |
IXHHI10-18-215T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 10 Horsepower (hp) Power and 1770 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 10 hp | Frame Number N/A 215T | Speed N/A 1770 rpm | Voltage N/A 230 V460 V |
IXHHI10-12-256T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 10 Horsepower (hp) Power and 1175 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 10 hp | Frame Number N/A 256T | Speed N/A 1175 rpm | Voltage N/A 230 V460 V |
IXHHI15-36-254T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 15 Horsepower (hp) Power and 3550 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 15 hp | Frame Number N/A 254T | Speed N/A 3550 rpm | Voltage N/A 230 V460 V |
IXHHI15-18-254T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 15 Horsepower (hp) Power and 1775 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 15 hp | Frame Number N/A 254T | Speed N/A 1775 rpm | Voltage N/A 230 V460 V |
IXHHI15-12-284T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 15 Horsepower (hp) Power and 1175 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 15 hp | Frame Number N/A 284T | Speed N/A 1175 rpm | Voltage N/A 230 V460 V |
IXHHI20-36-256T /Asset/IXHHI-Model---Explosion-Proof--Premium-Efficiency--Three-Phase--TEFC--Foot-Mounted-Electric-Motors.png | N/A IXHHI Model 20 Horsepower (hp) Power and 3550 Revolutions Per Minute (rpm) Speed Electric Motor | Power N/A 20 hp | Frame Number N/A 256T | Speed N/A 3550 rpm | Voltage N/A 230 V460 V |
