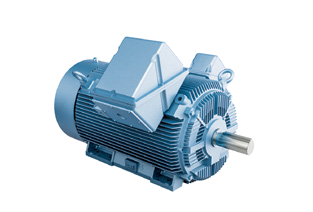

HSDE Model - Severe Duty, Large Motor Three Phase, TEFC, Foot Mounted Electric Motors
HD Hyundai Electric Motors
Features
- Insulation Class F, Temperature rise B or F, 40 ºC ambient
- Cast Iron construction, 460 V, Direct-on-line & Inverter duty
- WTD PT 100 Ohm 2 EA/Phase
- BTD PT 100 Ohm 1 EA/Bearing
- Heater 1 EA/Motor
- Auxiliary Terminal Box 2EA/Motor
1 2
Item # |
Item Name |
Power |
Frame Number |
Speed |
Voltage |
---|---|---|---|---|---|
HSDE250-12-L449T-IBBRSRSH /Asset/15.png | N/A HSDE Model 296.3 Ampere (A) Full Load Current Electric Motor | Power N/A 250 hp | Frame Number N/A L449T | Speed N/A 1185 rpm | Voltage N/A 460 V |
HSDE300-36-L449TS-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 327.5 Ampere (A) Full Load Current Electric Motor | Power N/A 300 hp | Frame Number N/A L449TS | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE300-18-L449T-IBBRSRSH /Asset/15.png | N/A HSDE Model 333.6 Ampere (A) Full Load Current Electric Motor | Power N/A 300 hp | Frame Number N/A L449T | Speed N/A 1785 rpm | Voltage N/A 460 V |
HSDE300-12-L449T-IBBRSRSH /Asset/15.png | N/A HSDE Model 350.9 Ampere (A) Full Load Current Electric Motor | Power N/A 300 hp | Frame Number N/A L449T | Speed N/A 1185 rpm | Voltage N/A 460 V |
HSDE350-36-L449TS-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 378.5 Ampere (A) Full Load Current Electric Motor | Power N/A 350 hp | Frame Number N/A L449TS | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE350-18-L449T-IBBRSRSH /Asset/15.png | N/A HSDE Model 385.5 Ampere (A) Full Load Current Electric Motor | Power N/A 350 hp | Frame Number N/A L449T | Speed N/A 1785 rpm | Voltage N/A 460 V |
HSDE350-12-L449T-IBBRSRSH /Asset/15.png | N/A HSDE Model 407.1 Ampere (A) Full Load Current Electric Motor | Power N/A 350 hp | Frame Number N/A L449T | Speed N/A 1185 rpm | Voltage N/A 460 V |
HSDE400-36-L449TS-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 436.7 Ampere (A) Full Load Current Electric Motor | Power N/A 400 hp | Frame Number N/A L449TS | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE400-18-L449T-IBBRSRSH /Asset/15.png | N/A HSDE Model 444.8 Ampere (A) Full Load Current Electric Motor | Power N/A 400 hp | Frame Number N/A L449T | Speed N/A 1785 rpm | Voltage N/A 460 V |
HSDE400-12-5009-IBBRSRSH /Asset/15.png | N/A HSDE Model 467.9 Ampere (A) Full Load Current Electric Motor | Power N/A 400 hp | Frame Number N/A 5009 | Speed N/A 1185 rpm | Voltage N/A 460 V |
HSDE450-36-5009S-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 487.7 Ampere (A) Full Load Current Electric Motor | Power N/A 450 hp | Frame Number N/A 5009S | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE450-18-5009-IBBRSRSH /Asset/15.png | N/A HSDE Model 491.1 Ampere (A) Full Load Current Electric Motor | Power N/A 450 hp | Frame Number N/A 5009 | Speed N/A 1785 rpm | Voltage N/A 460 V |
HSDE450-12-5009-IBBRSRSH /Asset/15.png | N/A HSDE Model 522.5 Ampere (A) Full Load Current Electric Motor | Power N/A 450 hp | Frame Number N/A 5009 | Speed N/A 1185 rpm | Voltage N/A 460 V |
HSDE500-36-5010S-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 545.9 Ampere (A) Full Load Current Electric Motor | Power N/A 500 hp | Frame Number N/A 5010S | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE500-18-5010-IBBRSRSH /Asset/15.png | N/A HSDE Model 549.7 Ampere (A) Full Load Current Electric Motor | Power N/A 500 hp | Frame Number N/A 5010 | Speed N/A 1785 rpm | Voltage N/A 460 V |
HSDE500-12-5011-IBBRSRSH /Asset/15.png | N/A HSDE Model 584.9 Ampere (A) Full Load Current Electric Motor | Power N/A 500 hp | Frame Number N/A 5010 | Speed N/A 1185 rpm | Voltage N/A 460 V |
HSDE600-18-5011-IBBRSRSH /Asset/15.png | N/A HSDE Model 659.7 Ampere (A) Full Load Current Electric Motor | Power N/A 600 hp | Frame Number N/A 5011 | Speed N/A 1785 rpm | Voltage N/A 460 V |
HSDE600-36-5812S-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 662.4 Ampere (A) Full Load Current Electric Motor | Power N/A 600 hp | Frame Number N/A 5812S | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE600-12-5812-IBBRSRSH-F /Asset/15.png | N/A HSDE Model 701.9 Ampere (A) Full Load Current Electric Motor | Power N/A 600 hp | Frame Number N/A 5812 | Speed N/A 1185 rpm | Voltage N/A 460 V |
HSDE700-36-5812S-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 768.4 Ampere (A) Full Load Current Electric Motor | Power N/A 700 hp | Frame Number N/A 5812S | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE700-18-5812-IBBRSRSH /Asset/15.png | N/A HSDE Model 771.0 Ampere (A) Full Load Current Electric Motor | Power N/A 700 hp | Frame Number N/A 5812 | Speed N/A 1785 rpm | Voltage N/A 460 V |
HSDE750-36-5812S-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 824.4 Ampere (A) Full Load Current Electric Motor | Power N/A 750 hp | Frame Number N/A 5812S | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE800-36-5812S-IBBRSRSHSP /Asset/15.png | N/A HSDE Model 883.2 Ampere (A) Full Load Current Electric Motor | Power N/A 800 hp | Frame Number N/A 5812S | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE900-36-5812S-IBBRSRSHSP-F /Asset/15.png | N/A HSDE Model 987.8 Ampere (A) Full Load Current Electric Motor | Power N/A 900 hp | Frame Number N/A 5812S | Speed N/A 3570 rpm | Voltage N/A 460 V |
HSDE250-12-L449T-IBSH /Asset/15.png | N/A HSDE Model 296.3 Ampere (A) Full Load Current Electric Motor | Power N/A 250 hp | Frame Number N/A L449T | Speed N/A 1185 rpm | Voltage N/A 460 V |
